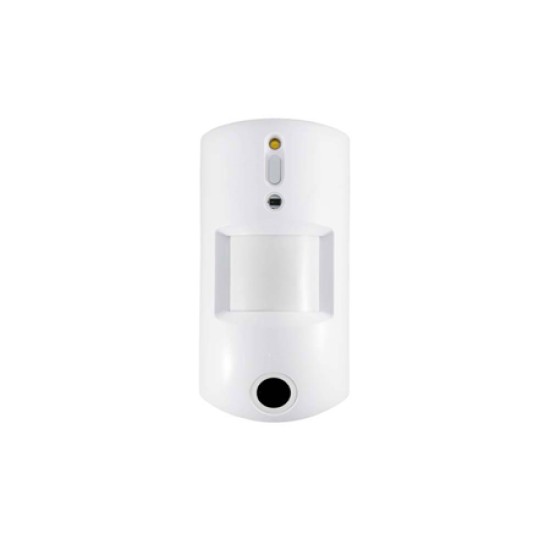

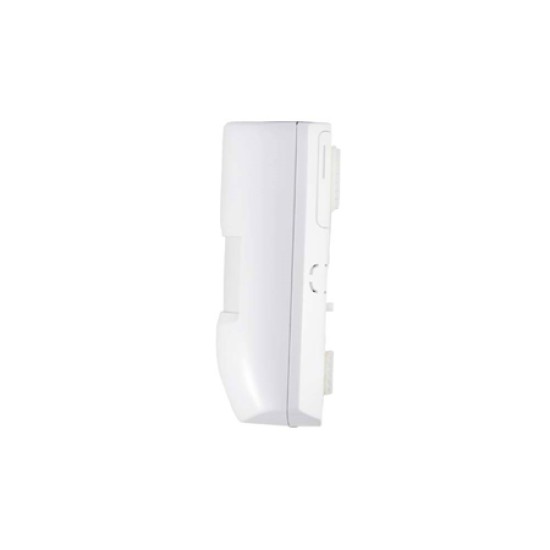

MotionCam PIR Sensor Indoor

VESTA-270 is a new, feature-rich PIR motion sensor camera, offering flexible installation and optimal performance at a height of 2.3-2.5m. VESTA-270 can be set as pet-immune or non-pet-immune through remote configuration. Additionally, its anti-masking feature detects any attempts to obstruct the detector’s field of view.

With an installation height higher than previous generations, VESTA-270 reduces the risk of sabotage. The device minimizes blind spots and avoids detecting pets up to 25 kg, reducing false alarms. Its night illumination capability ensures sufficient lighting for image capture even in low-light conditions. The wide-angle camera lens provides full coverage without blind spots, while the combination of color VGA/QVGA images ensures that critical details for visual alarm verification are promptly communicated to users.

Powered by F1 technology, VESTA-270 delivers an extended RF communication range, enhanced penetration and sensitivity, fast image transfer, and advanced dynamic speed adjustment algorithms. Compatible with VESTA-030 Repeater , VESTA-270 can be seamlessly deployed in large or complex environments.

VESTA-270 Features

• Advanced Dynamic Speed Adjustment Algorithms ensure stable and fast image transfer based on signal quality
• Installation height: 2.3-2.5m
• Pet immunity can be enabled or disabled via remote setting or jumper switch
• Pet weight tolerance: Up to 25 kg
• Blind spot elimination for enhanced detection accuracy
• Wide-angle camera ensures full coverage with no blind spots
• Adjustable sensitivity levels: High / Normal
• Motion-triggered image capture (configurable to capture 1, 3, or 6 images)
• Three alarm image processing options:
  • One color VGA (640x480 pixels) alarm image
  • Three color QVGA (320x240 pixels) alarm images
  • Six color QVGA (320x240 pixels) alarm images
• On-demand image capture delivers a single image upon request
• Anti-masking feature detects any attempt to obstruct the detector’s field of view
• Night illumination capability:
  • Warm white fill light (up to 5 meters)
  • Infrared (IR) fill light (up to 7 meters)
• F1 technology enhances signal transmission speed and expands communication range
• Regular supervision signals ensure proper operation
• Tamper protection prevents unauthorized interference
• Low battery detection for proactive maintenance
• Flexible installation options with included wall bracket
• Optional mounting accessory: Rotating holder
• Ideal for security and home automation applications
• Compatible with VESTA F1 gateways, control panels and repeaters VESTA-030
• LED indicators for fault detection and test modes
• Certified for reliability and security:
  • EN50131 Grade 2, Cass II
  • INCERT-certified

VESTA-270 Specifications

• Detection Range: 12 meters
• Horizontal Angle: 90 degrees
• Installation Height: 2.3 - 2.5 meters
• Lens: VGA CMOS Camera
• Field of View: Horizontal: 102 degrees
• Resolution: 640 x 480 pixels or 320 x 240 pixels
• Night Illumination:
  • Warm white fill light, covering up to 5 meters
  • Infrared (IR) fill light: 7 meters outdoors, 10 meters indoors (room size limited to 10m x 6m)
• Power Source:
  • 3V, CR123A Lithium battery x 3
• Battery Life:
  • Lithium: 8 years
• Mounting Options:
  • Wall or Corner Mount
  • Optional Accessory: Rotating Holder
• Rotating Angles (with Rotating Holder):
  • Vertical: 70°
  • Horizontal: 90°
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Operating Humidity: Up to 85% non-condensing at 23°C
• Dimensions:
  • VESTA-270: 63 mm x 123 mm x 45 mm
  • Corner Mount Bracket: 44 mm x 39 mm x 20 mm
  • Rotating Holder: 70 mm x 50 mm x 34 mm
