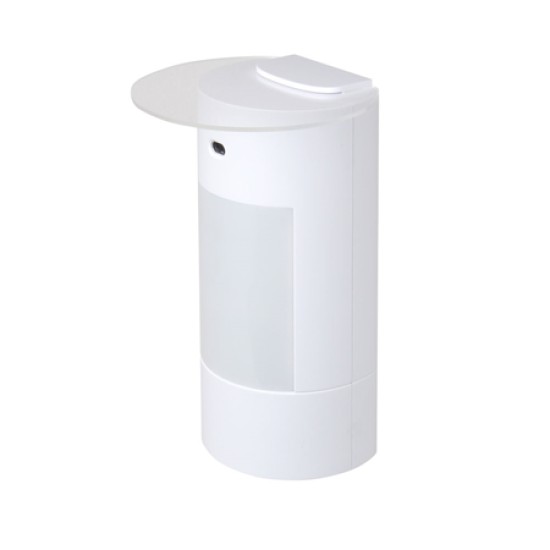

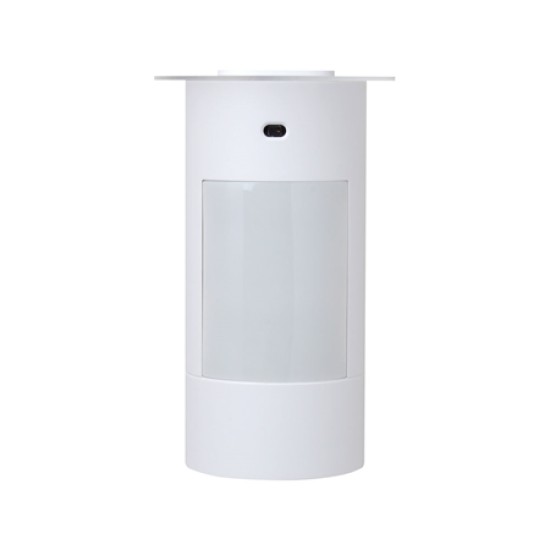

Outdoor PIR Motion Detector

The VESTA-036 is a high-performance wireless PIR motion sensor designed for outdoor use, with a pet-immune feature to minimize false alarms. It employs advanced Adaptive Digital Signal Processing (ADSP) technology to enhance sensitivity and ensure reliable performance. Additionally, the sensor includes auto temperature compensation, which further reduces the risk of false alerts. Its built-in anti-masking feature detects any efforts to obstruct the sensor, while its tamper-resistant design prevents unauthorized access or removal. Any attempt to compromise the sensor's functionality will immediately trigger an alarm.

With an IP55 weatherproof rating and UV-resistant casing, the VESTA-036 is perfect for outdoor environments like backyards, gates, and outdoor hallways. It’s also easy to install and has a long battery life, providing consistent monitoring through random supervision signals to maintain system integrity. This makes it an ideal solution for safeguarding your property and ensuring the safety of those within.

Features

• Detects suspicious movements by passive infrared technology
• Microprocessor controlled with advanced Adaptive Digital Signal Processing (ADSP) algorithms
• IP55 weatherproof protection for outdoor usage
• Three levels of pet immunity: Low (60kg [132lbs]), Medium (40kg [88lbs]), High (30kg [66lbs])
• Optional mounting accessory: Rotating holder
• Automatic temperature compensated sensitivity control
• High immunity to false alarms
• Anti-masking and Tamper protection
• Randomized supervision signals for system integrity
• Low battery detection
• Automatic power saving mechanism
• LED Indicator
• Ideal for backyards, lawns, gates, outdoor corridors, and hallways
• EN50131 Grade2, Class IV certified

Specifications

• Power Source: 1.5V, L91 Lithium battery x 2
• Battery Life: 5 years
• Detection Range: 10 meters over a 90° angle
• Mounting Height: at least 2 meters
• Mouting Options: Wall / Corner mount、Optional accessary: Rotating holder
• Rotating Angles (with Rotating Holder only): Horizontal: 95 degrees
• Weatherproof Protection: IP55
• Operating Temperature: -25°C to 60°C (-13°F to 140°F)
• Operating Humidity: Up to 85% non-condensing
• Dimensions: EIR-32: 130 mm x 61 mm x 48 mm、Rotating holder: 85.3 mm x 50.3 mm x 32.7 mm
