Repeater

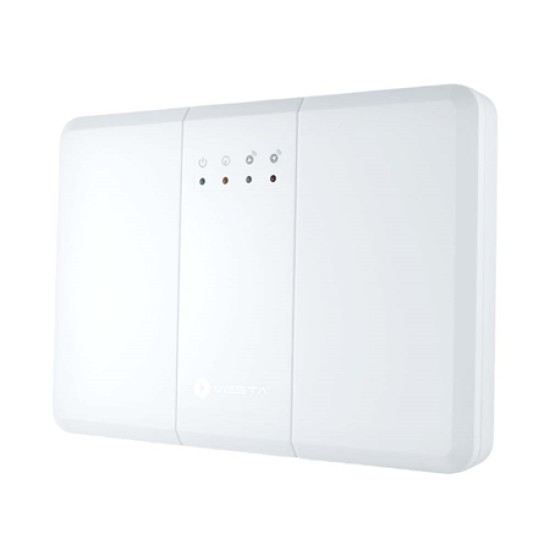

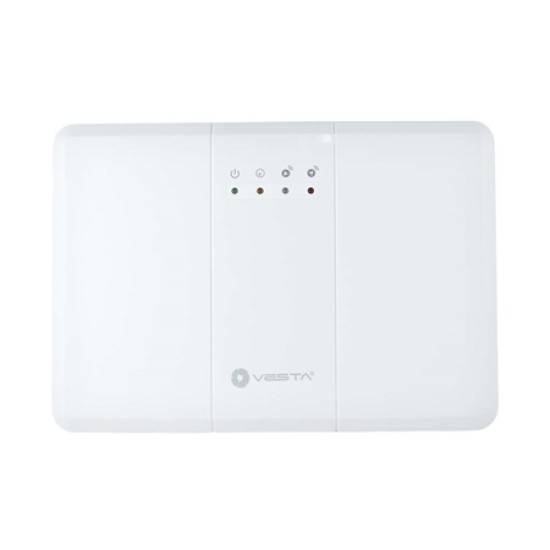

The VESTA-030 is a high-performance repeater designed to extend wireless communication into hard-to-reach areas with enhanced speed and reliability.

Compatible with F1 and SF1 devices, it ensures seamless operation with PIR motion detector cameras:

• F1 models support F1 PIR motion detector cameras.
• SF1 models support both SF1 and F1 PIR motion detector cameras.

Utilizing cutting-edge SF1/F1 technology, the VESTA-030 strengthens communication between the alarm panel and sensors, eliminating signal loss due to distance constraints. Additionally, it enhances transmission rates, enabling PIR motion sensor cameras to deliver high-definition images to the control panel.

Features

• Employment of SF1/F1 technology
• Extends the communication range between security alarm panel and sensors
• Compatibility with SF1/F1 PIR motion detector cameras
• Enhanced signal transmission speed
• Smart signal filtering eliminates repetitive signal transmissions
• Rechargeable backup battery
• Tamper protection against unauthorized removal
• Four LEDs display power, installation, and transmission and reception status
• Regular supervision signals to check system integrity
• EN50131 Grade 2, Class II

Specifications

• Power Supply: 12V 1A Adaptor
• Backup Battery Pack: 1100mAh, AA Ni-MH Battery x 4
• Backup Battery Life: 30 hours (RP-29-SF1); 18 hours (RP-29-F1)
• Operating Temperature: 0°C to 45°C (33°F to 113°F)
• Operating Humidity: Up to 85% non-condensing
• Dimensions: 186mm x 130mm x 30mm
