Outdoor PIR Motion Sensor Camera

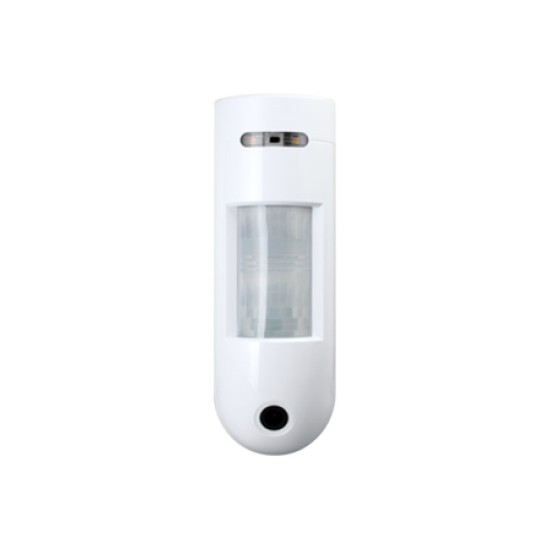

The VESTA-347 is a next-generation outdoor passive infrared (PIR) motion sensor camera, equipped with an anti-masking function that detects any attempts to obstruct the sensor by placing objects in its field of view. With an installation height of 2.3 – 2.5 meters above the ground, this higher mounting option is designed to better suit user needs. The camera also supports remote control for a double knock alert system and remote sensitivity range adjustments.

The VESTA-347 features a unique antenna that maximizes receiver sensitivity, ensuring precise signal transmission and reception. This results in improved penetration rates, offering greater flexibility for installation in large or complex premises.

Built with UV-resistant housing and waterproof to IPX5 standards, the VESTA-347 is perfect for use in backyards, lawns, gates, outdoor corridors, and hallways. Its combination of color VGA/QVGA images ensures that all essential details required for visual alarm verification are quickly communicated to users.

Features

• Anti-masking feature allows for detection of any attempts to blind the detector by placing objects in its field of view
• Local or remote adjustment of sensitivity range
• Installation height of 2.3 – 2.5 meters above ground
• Remote control of double knock system and sensitivity adjustment
• Pet immunity configuration via jumper switch
• Advanced Dynamic Speed Adjustment Algorithms to maintain stable and fast image transfer based on signal quality
• Three alarm image processing options:
  - One color VGA (640 x 480 pixels) alarm images
  - Three color QVGA (320 x 240 pixels) alarm images
  - Six color QVGA (320 x 240 pixels) alarm images
• Delivers one image upon request
• Night illumination capability
  - Warm white fill light covering up to 5 meters
  - Infrared (IR) fill light covering up to 7 meters
• IPX5 for outdoor usage
• Calibration line & tilting scales for mounting adjustment
• Detection range: 10 meters
• F1 technology accelerates the speed of signal transmission and boosts communication range
• LED status indicator
• Regular supervision signals ensure proper operation
• Compatible with Climax’s F1 gateways/control panels and Repeater RP-29 / RMB-29
• Tamper protection to prevent unauthorized sabotage
• Low battery detection
• Ideal for balconies, poolsides, garages, entrances, French doors, sidewalks, etc.
• EN50131 Grade 2, Class IV certified

Specifications

• Range: 10 meters
• Horizontal Angle: 90 degrees
• Installation Height: 2.3-2.5 meters
• Lens: VGA CMOS Camera
• Field of View: (H) 102 degrees
• Resolution: 640 x 480 pixels or 320 x 240 pixels
• Night Illumination: Warm white fill light covering 5 meters (VST-892EX)、Infrared (IR) fill light covering 7 meters (VST-892EX-IL)
• Power Source: 1.5V, L91 Lithium batteries x 4
• Battery Life: 9 years
• RF Range: 400 m - 900 m in open space

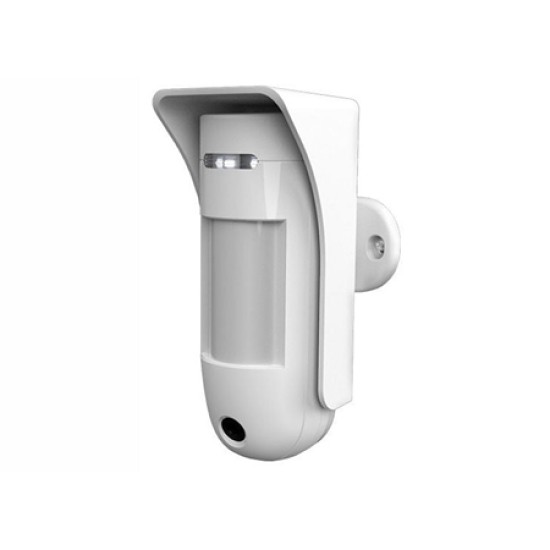

• Mounting Options: Wall / Corner mount、Optional accessary: Rotating holder
• Rotating Angles (with Rotating holder): Horizontal: 90° angle
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: Up to 85% non-condensing @23°C
• Dimensions: 76.5 mm x 190.37 mm x 76.6 mm、Rotating holder: 85.3 mm x 50.3 mm x 32.7 mm
