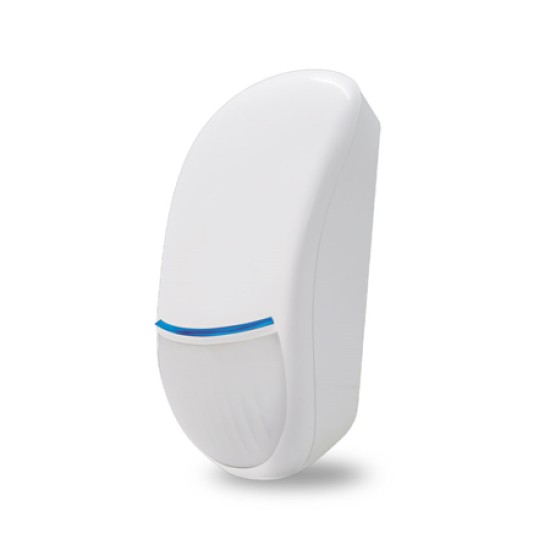

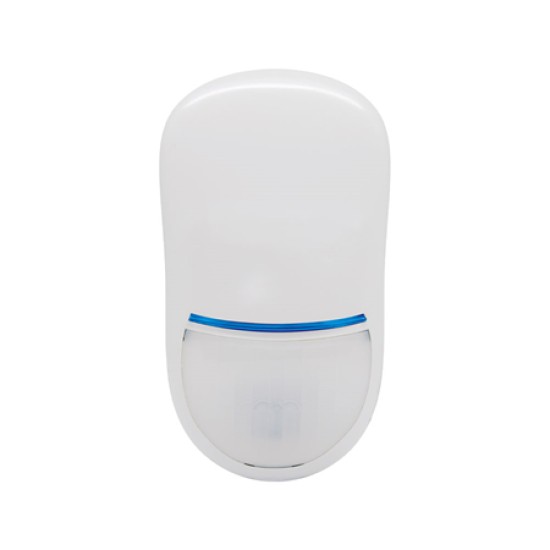

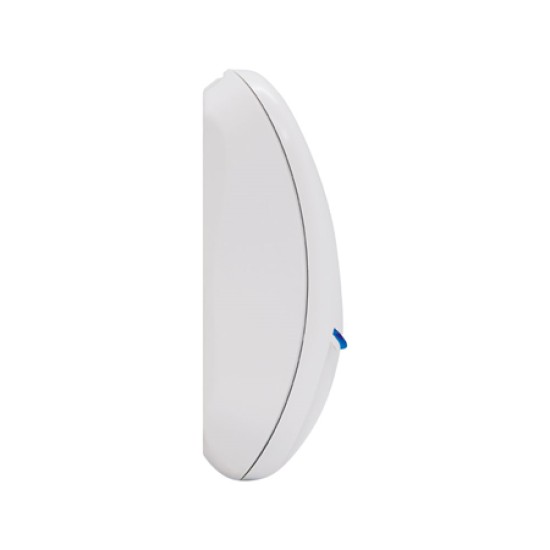

Dual technology anti-masking detector with EOL resistors

Main features

• VESTA dual technology detector
• Full digital PIR and Microwave 10.5GHz
• Range 15 meters, 100°
• Zero angle
• Antimasking and anti-pet 15 kg
• White light protection
• High RFI protection
• Tamper tamper
• Impulse counter
• Incorporates EOL resistors
• EN50131-2-4 Grade 3

Specifications

• 15 meter, 100° coverage
• LODIFF® Fresnel lenses(*)
• Lenses made of ultraviolet stabilizing material POLY IR®(*)
• Microwave frequency of 10.5 GHz
• Anti-trawl detection (zero angle)
• Anti-pet up to 15 kg
• 2" alarm duration
• Remote microwave blocking
• Self-diagnosis of operation
• Walk test
• Anti-breakage device
• Anti-masking protection
• White light protection
• RF interference protection of 30V/m
• Pulse counter
• Solid state relay
• Housing and wall tamper tamper
• Temperature compensation
• Incorporates EOL resistors
• Incorporates green, yellow and blue LEDs
• Power supply: 13.8V DC
• Operating temperature from -10°C ~ +40°C
• ABS housing
• Dimensions: 63 (W) x 114 (H) x 40 mm
• Optional stand not included
• EN50131 Grade 3 certified
