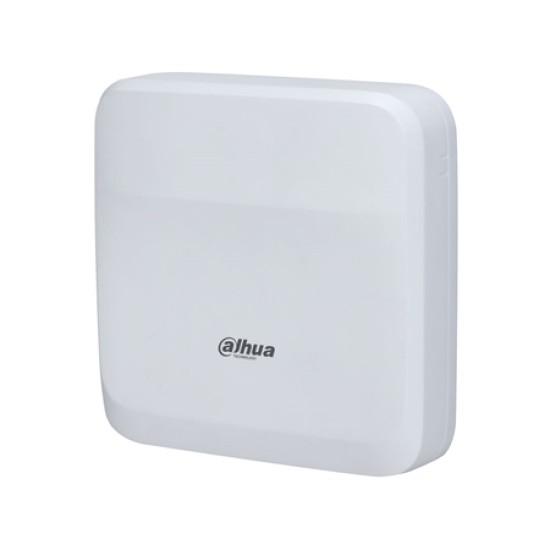

Access Controller

Main features

• Dahua access controller for two doors
• Supports 1000 users, 3000 fingerprints and 5000 cards
• Logging of up to 300 000 events
• Card, remote, code, fingerprint and combination unlocking
• Supports standard TCP/IP and PoE connection
• Interface for two RS485 or Wiegand readers
• Web server
• 12V DC / PoE+

  ---



Specifications

• Access Controller for 2 Doors
• Supports 2 RS485 readers or 2 Wiegand readers
• Capacity for 1000 users
• Capacity for 3000 fingerprints
• Capacity for 5000 cards
• Logging of up to 300 000 events
• Supports card unlock, remote unlock, code, fingerprint and combination unlocking
• List of 128 periods and 128 holiday periods
• Main control mode offers Access Control Platform functions, can connect and manage up to 19 sub-controllers
• Allows lock lists
• Multi-user authentication (use with platform)
• Real-time monitoring
• Multi-factor authentication
• Web configuration
• Built-in buzzer
• 3 RS485 ports
• 2 Wiegand inputs
• 2 alarm inputs / 2 alarm outputs
• Tamper tamper
• Duress alarm
• Door sensor timeout
• Illegal card exceeding threshold
• Duress Fingerprint
• Alarm link
• 2 exit request button inputs
• 2 door status inputs
• 2 door lock outputs
• 1 x RJ45 10/100Mbps Ethernet port
• Network protocols: TCP/IP, UDP, IPv4, DNS, DDNS, P2P
• Integrated Web server, with primary and secondary control modes
• Onvif and CGI interoperability
• Supplies power to the locks via 12V DC, 1A output
• Power supply: 12V DC / PoE+ (802.3at)
• Operating temperature -10°C ~ +55°C (-10°C ~ +55°C)
• Relative humidity 5% ~ 95% (non-condensing)
• Vandal resistant IK06 protection
• Polycarbonate + ABS plastic housing
• Indoor installation environment
• Dimensions: 186,4 (W) x 185,8 (H) x 58,3 mm
• Weight: 99 g
• Surface or guide rail mounting
• CE, FCC, UL
