Touchscreen WIFI Keypad

Powered by the Hybrid Panel through a BUS connection, Climax's VESTA-354 is a hardwired touchscreen keypad. Featuring a 7” full-color, high-resolution touchscreen, the VESTA-354 provides quick and secure access to arm/disarm/home arm the system, offering an intuitive way to operate the security system. Connected to the control panel via the BUS connection, the VESTA-354 displays an overview of the system as well as the panel status with its user-friendly graphic interface. Additionally, by connecting to a WiFi network, the VESTA-354 enables automation control, as well as video verification through IP cameras or video phones.

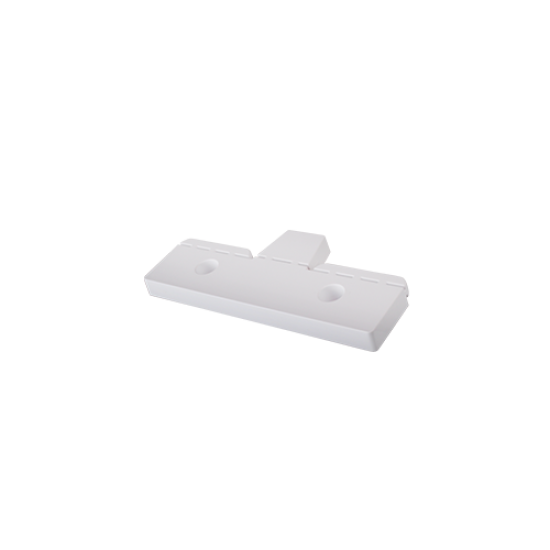

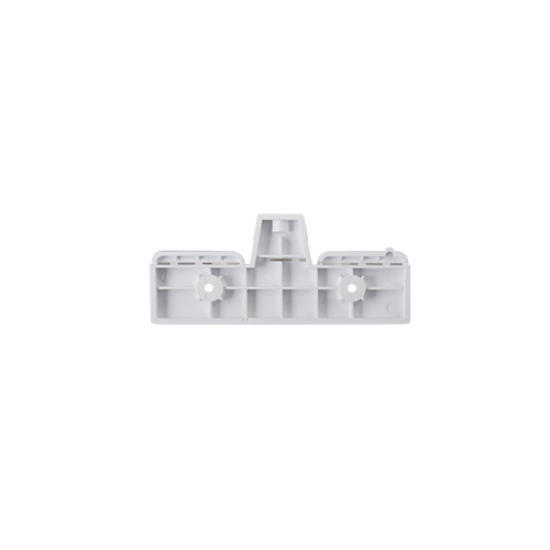

Through the BUS connection, the VESTA-354 allows the connection of multiple devices at once for enhanced flexibility and redundancy. The VESTA-354 can be wall-mounted or placed on a table using its stand. With its flexible installation options and capabilities for both security and home automation control, the VESTA-354 provides an effortless way for users to gain access control, as well as a smarter, more convenient way of living.

Features

• 7” high-resolution color graphic touchscreen for seamless device control

• Intuitive and user-friendly interface for easy operation

• Ideal for both residential and commercial environments

• Comprehensive security system and device control

• Real-time panel status display and event logs

• Home automation control for enhanced convenience

• Video verification support for IP cameras and video phones

• Integrated microphone and speaker for two-way communication

• Over-the-air (OTA) firmware update capability for easy system maintenance

  ---

  Specifications

• Display: 7” LCD

• WiFi: 802.11 b/g/n 2.4GHz

• Power Source:

  1. BUS connection to the control panel: BUS 13.5V

  2. Power terminal: DC 12V input / GND

• Current Consumption (Standby Mode): 10 mA

• Current Consumption (Max): 411 mA

• Audio: Built-in microphone and speaker

• Operating Temperature: -10°C to 45°C (14°F to 113°F)

• Operating Humidity: Up to 85% (non-condensing)

• Dimensions: 193.6 mm x 113.4 mm x 26.13 mm
