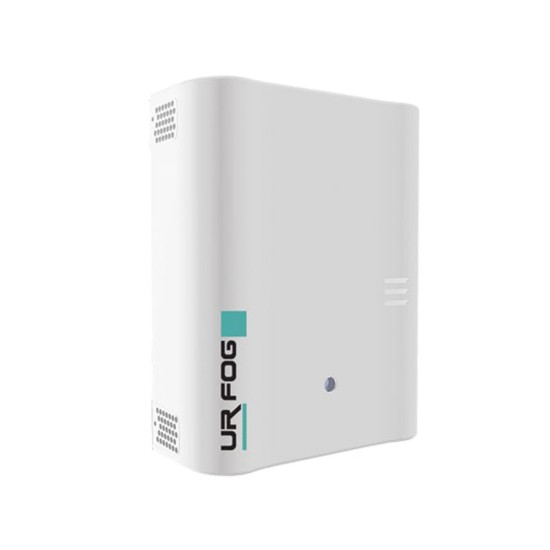

Fog generator UR Fog Modular 200

UR FOG Modular Series – High-Performance Fog Generator

The UR FOG Modular Series is a next-generation fogging system designed for rapid protection of larger spaces. With advanced Layer Pump & Heater Technology, it delivers up to 600 m³ of fog in just 28 seconds, making it ideal for warehouses, showrooms, retail stores, and high-value areas.

Key Features:

• 💨 Powerful Coverage: Up to 600 m³ per shot in just 28 seconds
• 🔥 Innovative Heating: Patented Layer pump & heater system for optimized fog delivery
• 💧 500 ml refill bag (included) with total emission capacity of 850 m³
• 🔌 Power Supply: 230V OR 120V
• 🔋 Battery Backup: Operates over 1 hour without mains power (12V, 2Ah battery – not included)
• 🌐 Smart Interfaces:
  • RS232 interface with UR FOG protocol
  • USB port for PC monitoring
  • Optional Cloud connectivity (Red Cloud)
• 🛠️ Flexible Installation: Vertical or horizontal wall mounting
• 📡 Wireless-Friendly Design: Plastic front panel for seamless wireless communication

Technical Specifications:

• Warm-up time: approx. 1 hour
• Max emission time: 28 seconds
• Average power consumption: 37 W
• Max heater power: 350 W
• Dimensions: 30 × 13 × 39 cm
• Weight: 7.5 kg (net) / 8.5 kg (gross)
• Certifications: Compliant with European standards
